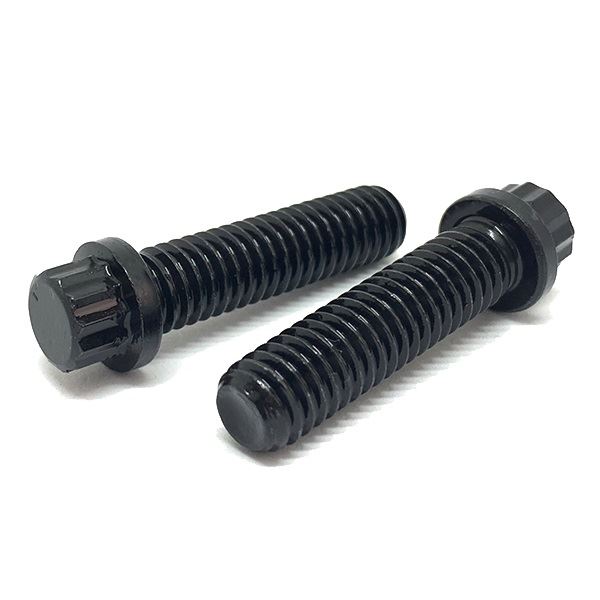

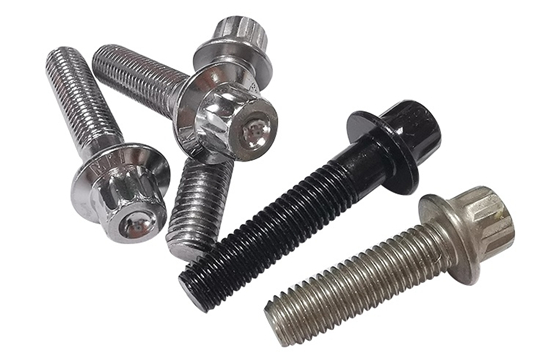

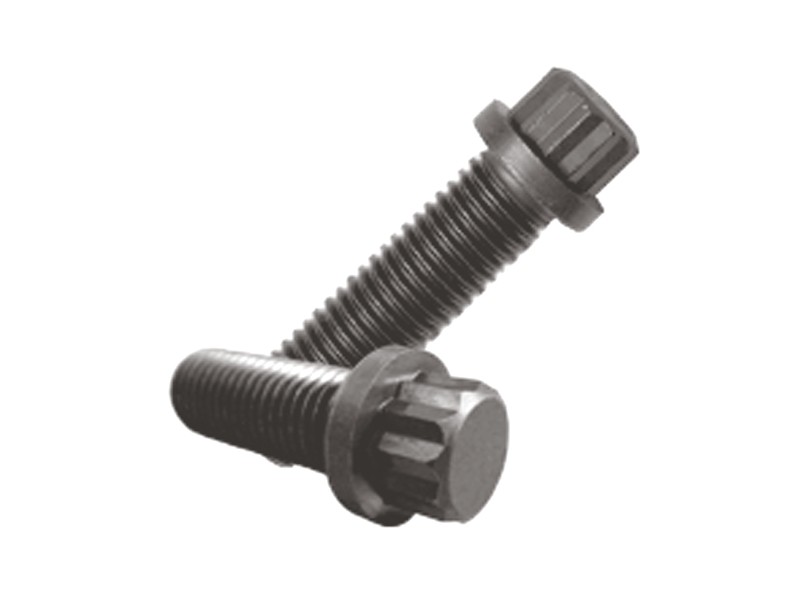

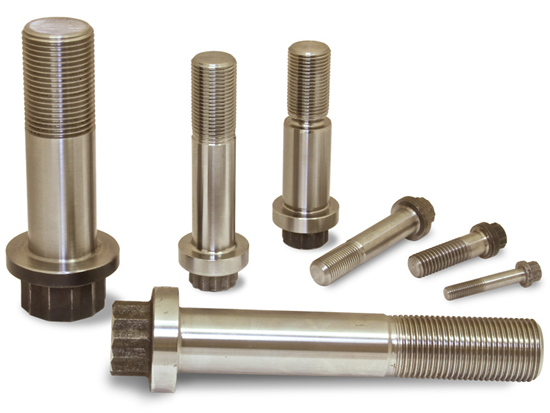

12 Point Flange Screw

12 Point Flange Screw is also called Ferry Cap Screw or 12-Point Flange Head Cap Screw.

These head cap screws work with all kinds of equipment in industrial fastening. With their 12-point design, they apply a larger amount of torque to a fastener, which can reduce the rounding of the hex socket

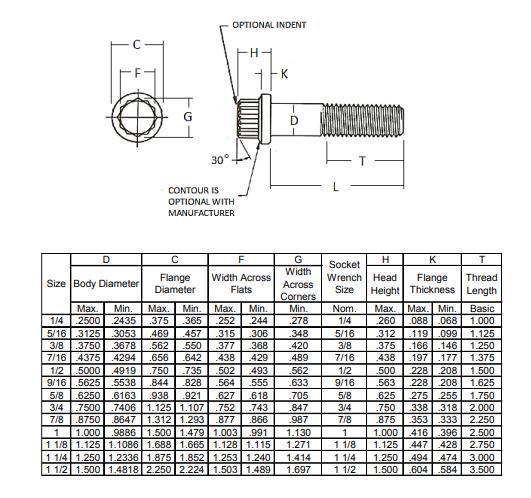

Dimensions: IFI-115

Material: Alloy Steel

Mechanical Properties: comply with all requirements of ASTM A574

Thread Requirements: ASME B1.1, UNC & UNF, Class 3A

Finishing: Black Oxide; Zinc Plating

12 Point Flange Screw is also called Ferry Cap Screw or 12-Point Flange Head Cap Screw.

These head cap screws work with all kinds of equipment in industrial fastening. With their 12-point design, they apply a larger amount of torque to a fastener, which can reduce the rounding of the hex socket

Dimensions: IFI-115

Material: Alloy Steel

Mechanical Properties: comply with all requirements of ASTM A574

Thread Requirements: ASME B1.1, UNC & UNF, Class 3A

Finishing: Black Oxide; Zinc Plating
