Spring Pin

Spring pin, also called slotted spring pin, is a headless cylinder shaped tube with a slot that runs down the middle of the pin. Spring pins are also known as tension, roll and expansion pins. They are to be installed in holes slightly smaller than the outside diameter of the pin. While being inserted, they compress against the wall of the hole.

The materials include stainless steel (302, 303, 304 and 420 stainless steel), and spring steel (plain and zinc).

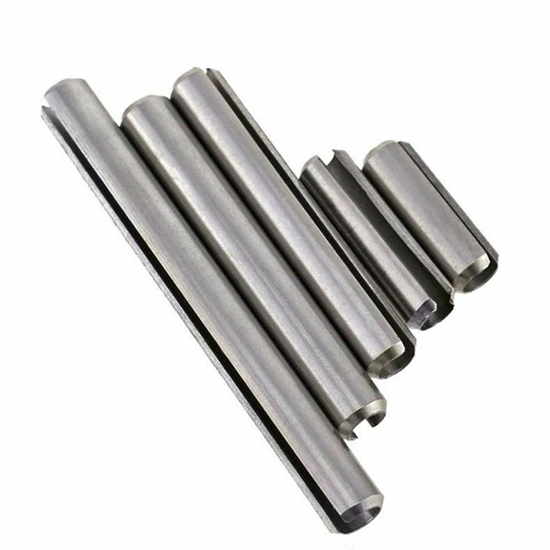

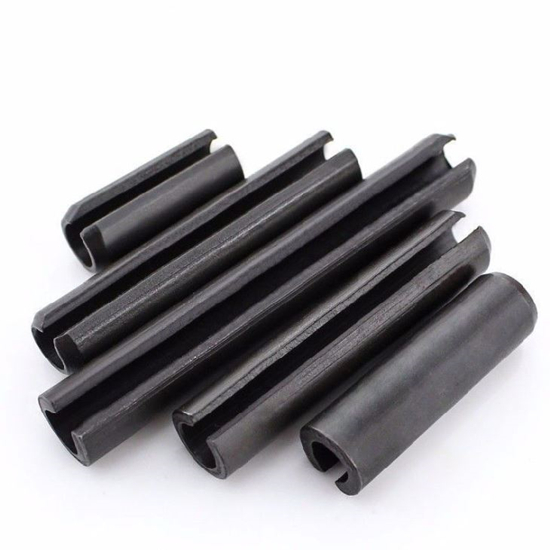

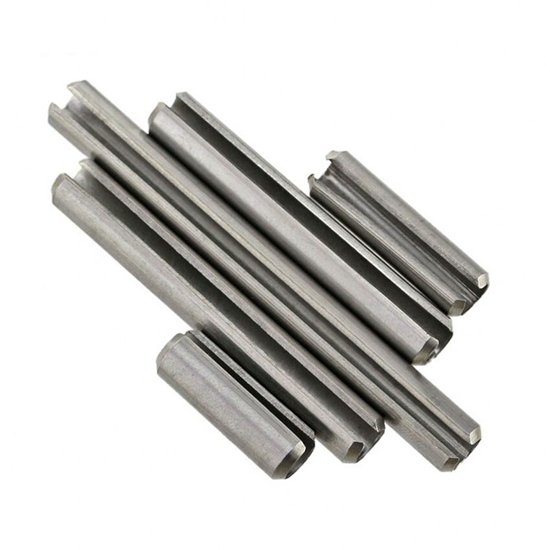

Stainless Steel Spring Pin and Steel Spring Pin

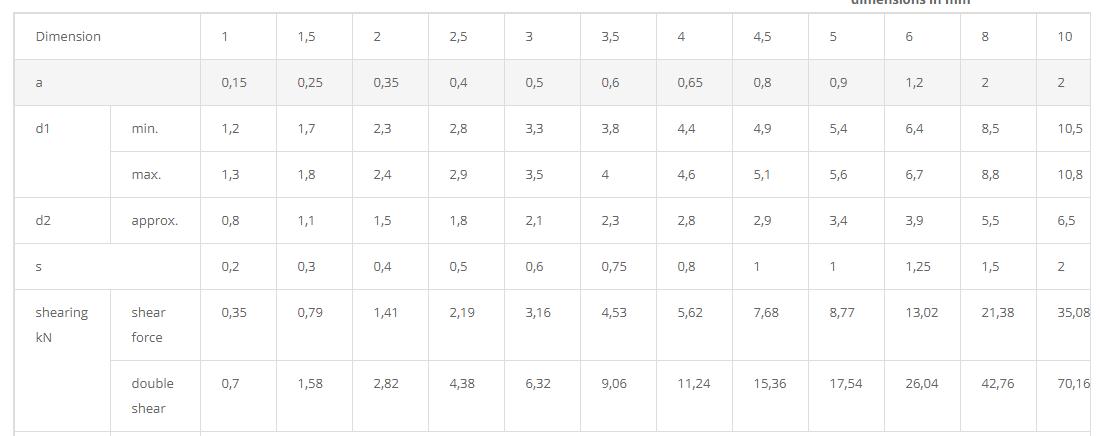

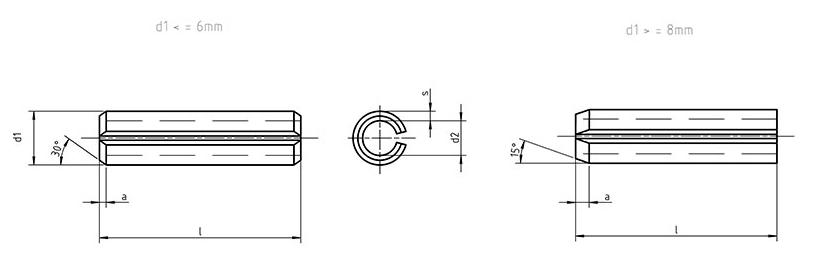

Heavy Duty Spring Pin DIN1481

Spring pin, also called slotted spring pin, is a headless cylinder shaped tube with a slot that runs down the middle of the pin. Spring pins are also known as tension, roll and expansion pins. They are to be installed in holes slightly smaller than the outside diameter of the pin. While being inserted, they compress against the wall of the hole.

The materials include stainless steel (302, 303, 304 and 420 stainless steel), and spring steel (plain and zinc).

Stainless Steel Spring Pin and Steel Spring Pin

Heavy Duty Spring Pin DIN1481
