Plow Bolt

Plow bolts are commonly found in farm, road construction and other heavy equipment.

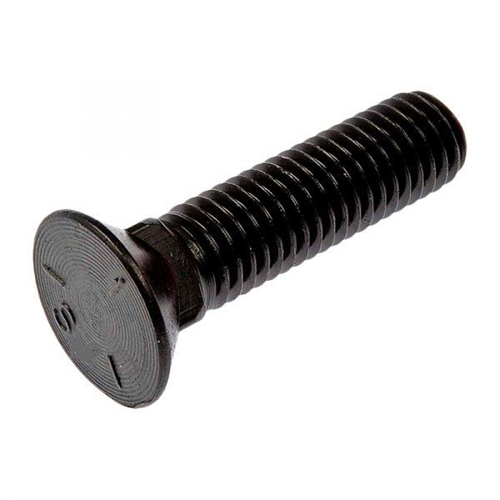

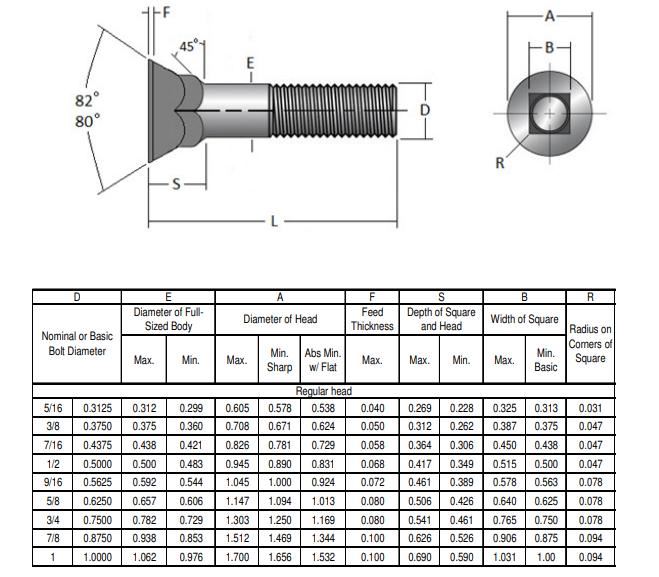

Flat Head Plow Bolt

Standard: ASME B18.9

Mechanical Properties: SAE J429 Grade 5, SAE J-429 Grade 8

Finish: Black Oxide

Thread Requirements: ASME B1.1, UNC or UNF, Class 2A

Head Marking: Manufacturer ID and three radial lines 120° apart for Grade5, six radial lines 60° apart for Grade 8

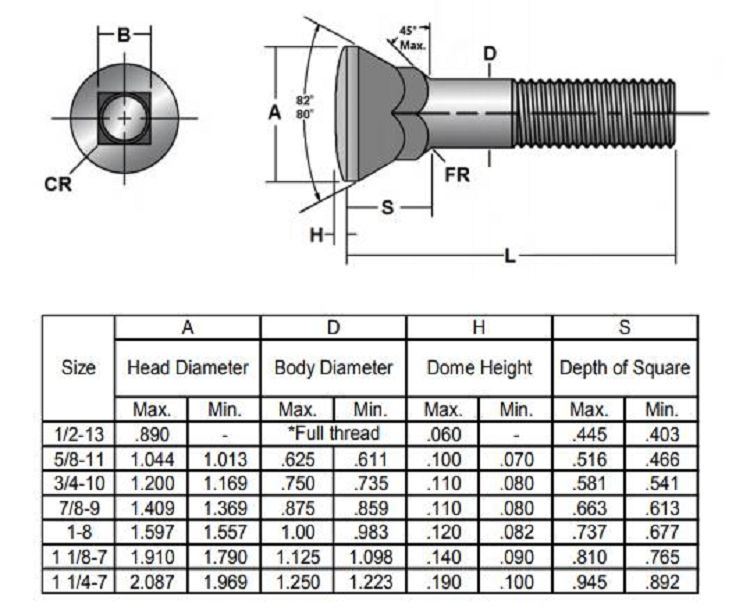

Domed Head Plow Bolt

Standard: ASME B18.9

Mechanical Properties: SAE J429 Grade 5, SAE J-429 Grade 8

Finish: Black Oxide

Thread Requirements: ASME B1.1, UNC or UNF, Class 2A

Head Marking: Manufacturer ID and three radial lines 120° apart for Grade5, six radial lines 60° apart for Grade 8

Plow bolts are commonly found in farm, road construction and other heavy equipment.

Flat Head Plow Bolt

Standard: ASME B18.9

Mechanical Properties: SAE J429 Grade 5, SAE J-429 Grade 8

Finish: Black Oxide

Thread Requirements: ASME B1.1, UNC or UNF, Class 2A

Head Marking: Manufacturer ID and three radial lines 120° apart for Grade5, six radial lines 60° apart for Grade 8

Domed Head Plow Bolt

Standard: ASME B18.9

Mechanical Properties: SAE J429 Grade 5, SAE J-429 Grade 8

Finish: Black Oxide

Thread Requirements: ASME B1.1, UNC or UNF, Class 2A

Head Marking: Manufacturer ID and three radial lines 120° apart for Grade5, six radial lines 60° apart for Grade 8
