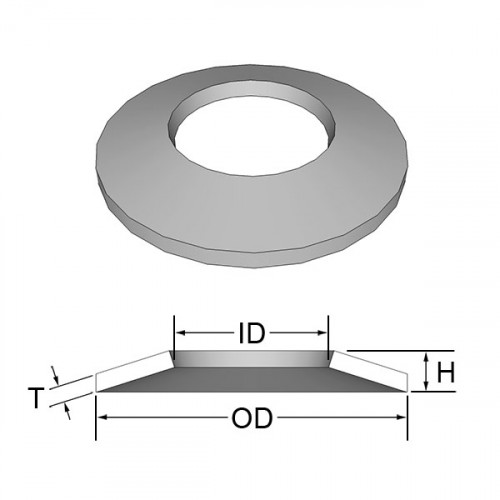

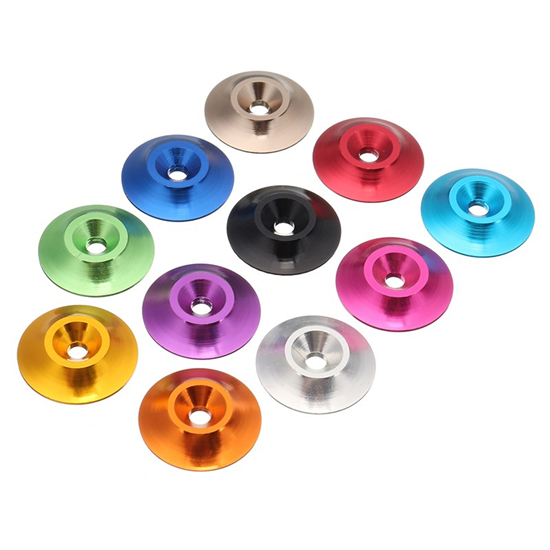

Conical Washer

Conical washers include Belleville Washer and Disc Spring Washer DIN 2093. They are used to distribute the load of a threaded fastener. They can also be used as a spacer, spring, shim, locking device, or for reinforcing and to reduce vibration.

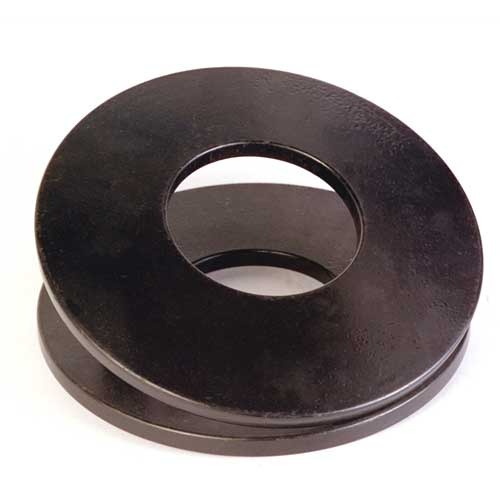

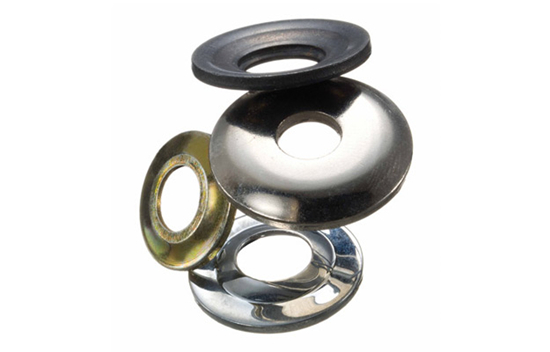

Disc Spring Washer DIN 2093

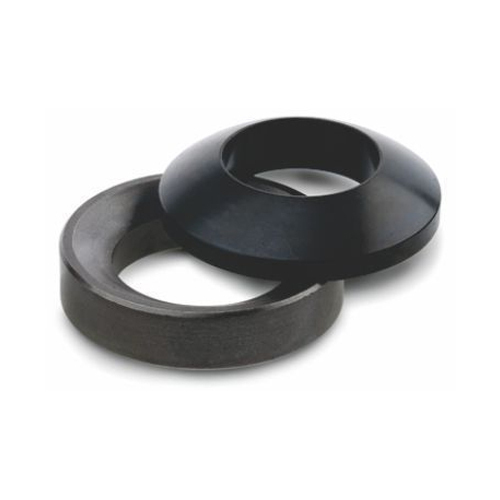

Conical Washer DIN 6796

Belleville Washer is also called Disc Spring Washer, which can be of inch and metric sizes. The metric standards include DIN 2093 and DIN 6796.

The Belleville Washer has a specific load for a given deflection. Two washers stacked in parallel will yield double the load of a single washer for the same deflection; three washers will yield triple the load; four washers will yield four times the load, etc. Alternatively, two washers stacked in series will yield double the deflection of single washer for the same load; three washers will yield triple the deflection; four washers will yield four times the deflection, etc. Various series-parallel combinations therefore can provide a wide variety of combined results of load versus deflection for the stack. Consequently, depending upon the application, the designer can:

• Stack in ‘parallel’ to increase load;
• Stack in ‘series’ to increase deflection;
• Adjust the load and deflection of a washer stack by adding or removing individual washers and/or the sequence in which they are used, whether in series or parallel.
