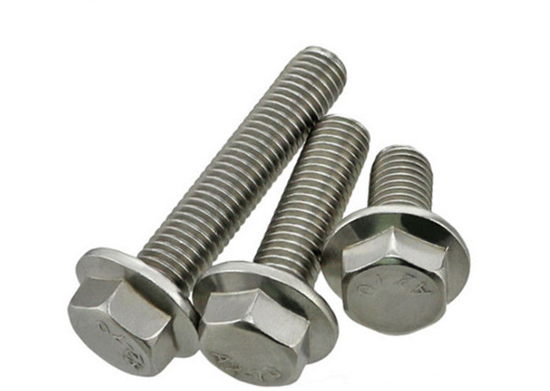

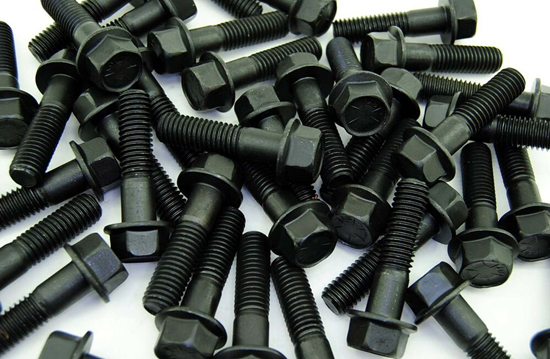

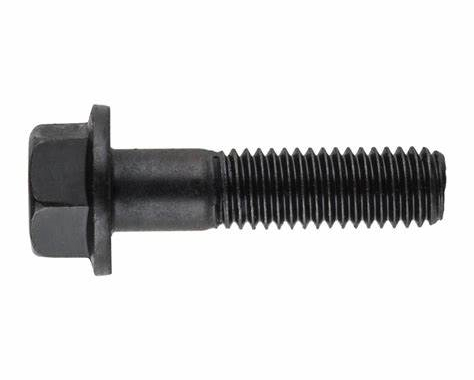

Hex Flange Bolt

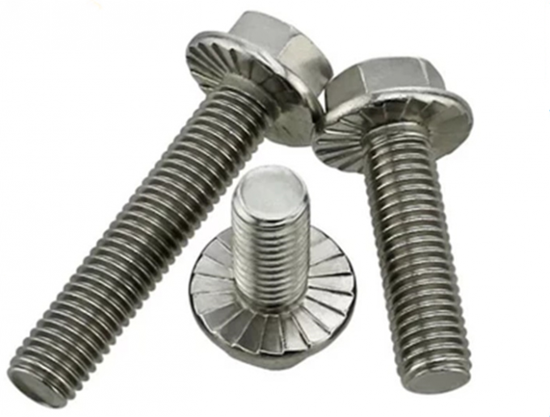

Hex Flange Bolt is also called Flange Bolt or Hex Flange Screw, which have a wide surface area underneath the head that distributes clamping loads over a greater area, eliminating the need for washers. Some flange bolts have serrated flanges designed for greater holding strength in high-vibration environments.

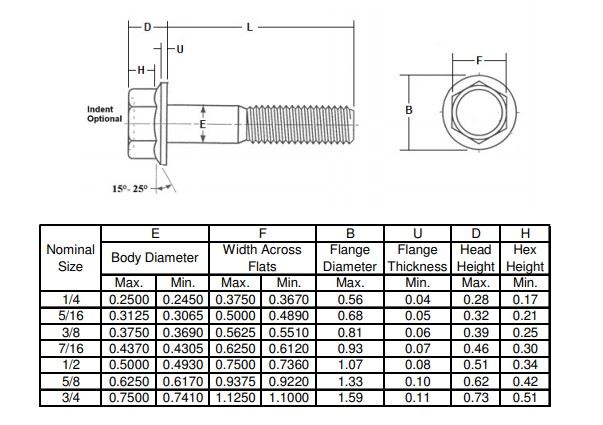

The flange bolt can be ASME B18.2.1, DIN6921 and also can be produced as per customers’ drawings or samples.

Material: Carbon Steel, Stainless Steel 304, Stainless Steel 316, Brass

Surface Finish: Black Oxide, Zinc platin, H.D.G and so on

Size: 1/4-3/4

Thread: ASME B1.1, UNC or UNF, Class 2A
