Elevator Bolt

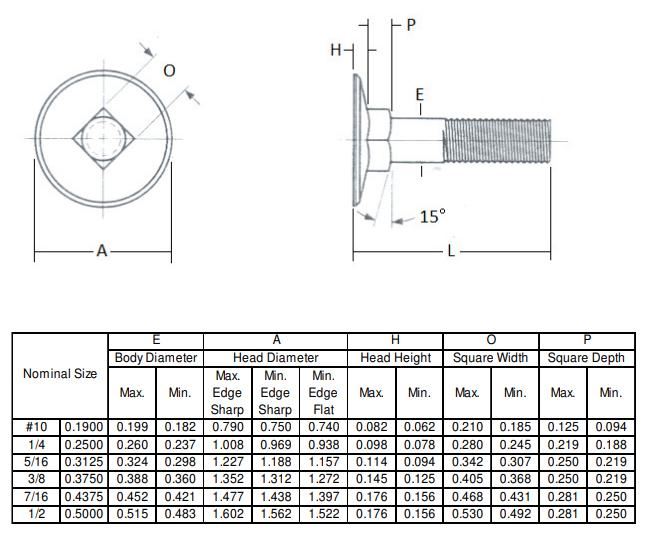

Flat Countersunk Head Elevator Bolt

Dimension: ASME B18.5

Mechanical Properties: ASTM A307A per ASME B18.5

Thread Requirements: ASME B1.1, UNC, Class 2A

Finish: Light Protective Oil; Zinc Plating

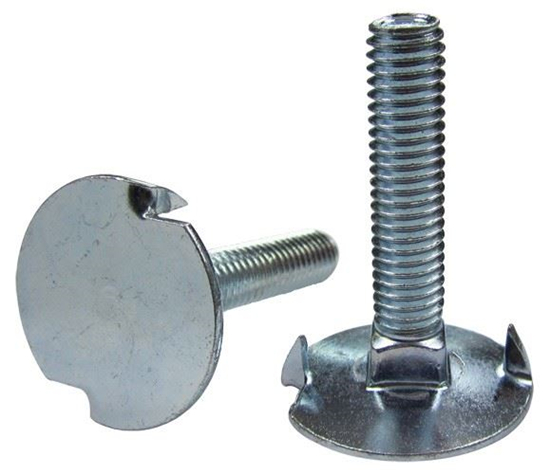

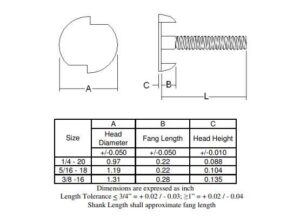

Fanged Elevator Bolt

Dimension: See Below

Mechanical Properties: Grade 2 per SAE J429

Thread Requirements: ASME B1.1, UNC, Class 2A

Finish: Light Protective Oil; Zinc Plating

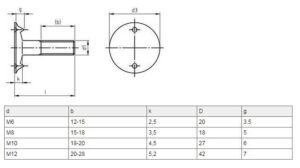

Elevator Bucket Bolt

Standard: DIN15237

Material: Steel and Stainless Steel

Thread Requirements: 6g

Finish: Zinc Plating; Passivate
